| Model | OPX-19 |
| Screen Size | 19" |
| Resolution | 1280*1024 |
| Viewing Angle | 85/85/80/80 |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Touch Screen | Capacitive |
| Controller | USB interface |
| Durability | ≥ 5M times |

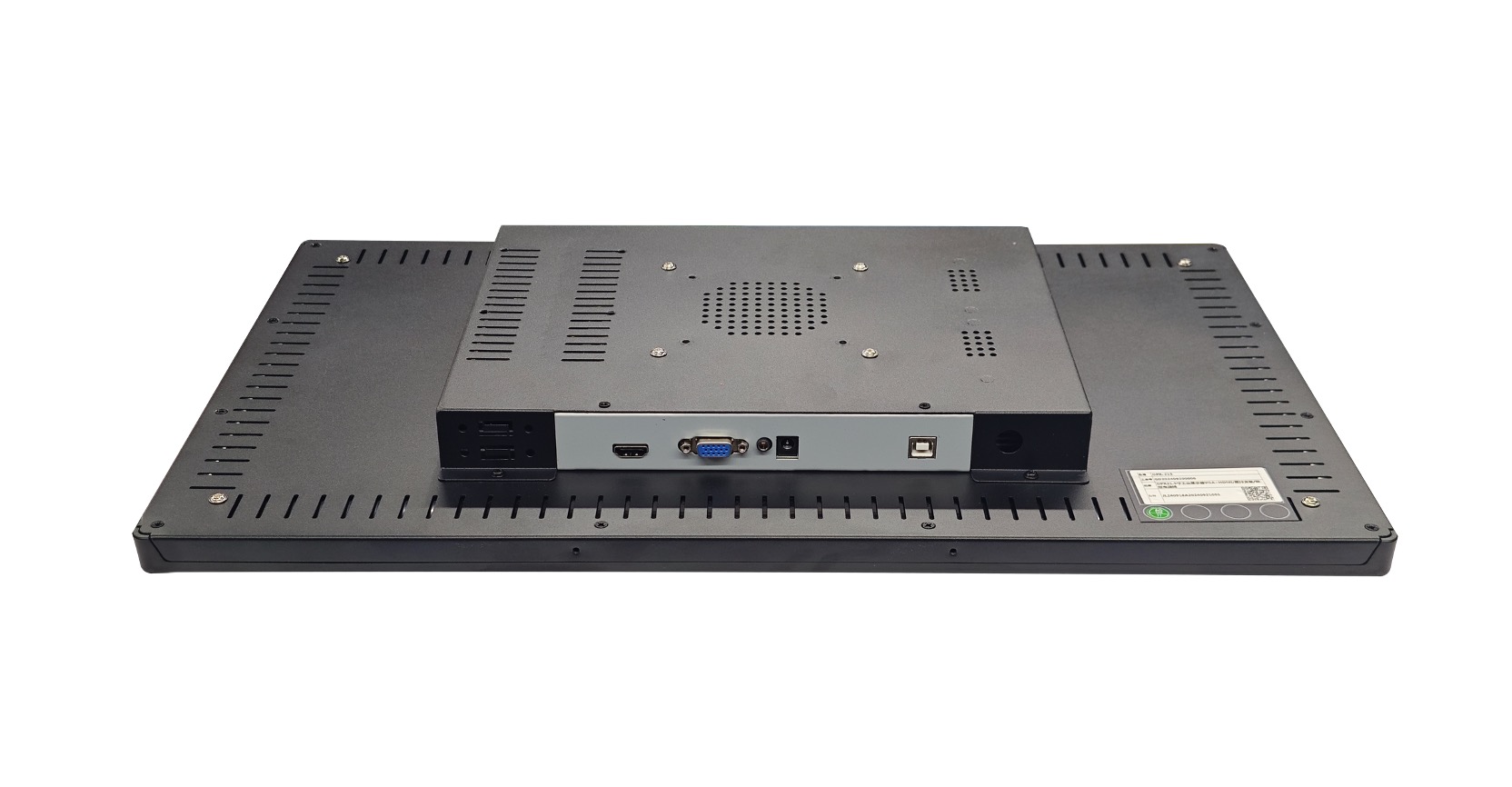

| USB | 1 *USB (For touchscreen cable) |
| Display | 1 *HDMI, 1 *VGA |

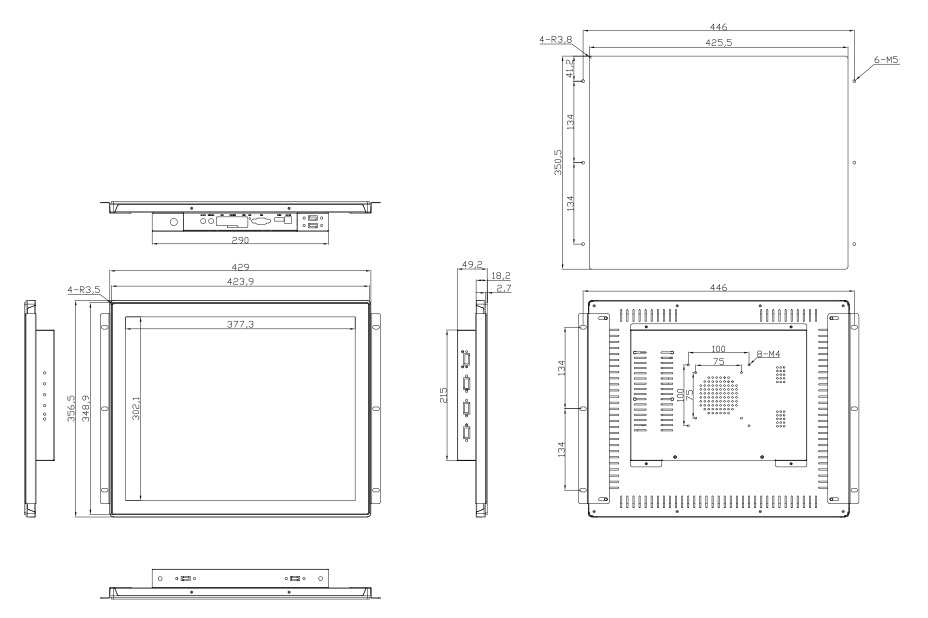

| Dimensions (mm) | 429*356.5*49.2mm |
| Mouning Hole Sizes (mm) | 425.5*350.5mm |
Individual Gross Weight (KG) | 6.20kg |
| Mounting Options | Embedded / Wall-mounted / Desktop |
| Operating Temperature | -30 ~ +70℃ |
| Storage Temperature | -40 ~ +80℃ |
Storage Humidity *Non-condensing | 5% ~ 95% |
| Power Input | 12V DC (3A) <Option Wide-range 9~36V DC Power Input> |
| Packaging Information | 1 *Master, 1 *Adapter, 1* Power Supply Cable, 1 *Touch Screen Cable, 1 *VGA cable, 1 *Manual, 1 *Warranty Card |
>Advantages
Our Vincanwo Group brand 19” Industrial Displays for Control Panels | OPX-19 used in control panels offer the enhanced durability to withstand harsh environments, high visibility in bright light conditions, touch-screen functionality for intuitive operation, ability to display complex data visualizations, reliable performance in continuous operation, customizability to specific industrial needs, and safety features to prevent damage from shock or vibration; all contributing to improved efficiency and productivity in industrial settings.
Key benefits of our Vincanwo Group brand 19” Industrial Displays for Control Panels | OPX-19:
Ruggedness:
Designed to withstand extreme temperatures, dust, moisture, vibrations, and other harsh industrial conditions that could damage standard displays.
High Brightness:
Clear visibility even in bright ambient light, crucial for outdoor or well-lit factory environments.
Touchscreen Interface:
Intuitive operation with touch input, allowing for quick and easy control of complex systems.
Data Visualization:
Ability to display detailed information, graphs, and trends in a visually appealing format for better decision-making.
Reliable Performance:
Built with components designed for continuous operation, minimizing downtime and ensuring consistent performance.
Customization:
Option to tailor the display layout and functionality to specific industrial requirements.
Safety Features:
Protective features like shock-resistant enclosures and tamper-proof designs to prevent damage and ensure operator safety.
Remote Monitoring:
Enables operators to monitor and control processes from a distance, enhancing safety and efficiency.
Specially, our Vincanwo Group brand 19” Industrial Displays for Control Panels | OPX-19 contributes to streamlined workflows by consolidating control panels and information interfaces into a single, cohesive platform. This integration minimizes the need for physical switches and buttons, reducing the risk of human error and equipment wear.
>Applications
Process Monitoring:
Visualizing key operational parameters like temperature, pressure, and flow rates to identify potential issues and take corrective actions.
Alarm Indication:
Displaying alerts and warnings to notify operators of abnormal conditions in the system.
Data Visualization:
Presenting complex data in graphical formats (charts, graphs) for easier interpretation and analysis.
Human Machine Interface (HMI):
Acting as a user interface for operators to interact with the system through touch controls or buttons, allowing them to adjust settings and initiate commands.
Remote Monitoring:
Providing access to critical process data from a remote location for monitoring and troubleshooting.
Specific industrial sectors where industrial displays are used in control panels:
Manufacturing:
Monitoring production lines, machine status, and quality control parameters.
Oil and Gas:
Tracking wellhead pressure, flow rates, and pipeline conditions
Power Generation:
Monitoring power output, grid stability, and equipment performance
Water Treatment:
Displaying water quality parameters, chemical levels, and treatment processes
Chemical Processing:
Monitoring chemical reactions, tank levels, and safety parameters
Our Vincanwo Group brand 19” Industrial Displays for Control Panels | OPX-19 is widely used in the manufacturing sector to streamline processes and enhance productivity. Control Panels: LCDs serve as interfaces for monitoring and controlling machinery. Operators can view machine status, adjust settings, and troubleshoot issues in real time.
