The rapid evolution of smart manufacturing and Industrial Internet of Things (IIOT) ecosystems has placed robust visual interfaces at the center of modern production floors. As industrial equipment transitions from physical switches to software-driven control panels, the demand for highly reliable display systems has surged. Unlike consumer-grade screens, visual panels deployed in factory automation, chemical processing, and outdoor heavy machinery must withstand extreme operational stresses while providing uninterrupted data visualization. Choosing the correct display architecture is a critical engineering decision that directly impacts operational efficiency, operator safety, and equipment longevity.
To guarantee continuous workflow and reliable machine-to-human data transmission in harsh factory environments, an industrial display monitor serves as a heavy-duty visual interface engineered to resist severe temperatures, mechanical impacts, electrical noise, and fluid exposure. These specialized units bridge the gap between complex automated machinery and plant operators by delivering crisp, real-time data under conditions that would instantly cause commercial-grade monitors to fail. By opting for optimized Industrial Displays built with industrial-grade chipsets and ruggedized enclosures, enterprises can prevent costly operational downtime and significantly reduce long-term system maintenance overhead.
This comprehensive guide serves as an engineering roadmap to understanding, evaluating, and integrating ruggedized screen technologies into your industrial equipment setups. We will examine the core technological building blocks, communication protocols, optical enhancements, and structural engineering techniques necessary to achieve peak performance. Additionally, we will analyze typical real-world applications and provide structured frameworks to streamline your technical evaluation process.
Section | Summary |
What Is an Industrial Display Monitor | Explains the fundamental definition, core design principles, and distinct differences between industrial-grade and consumer-grade display screens. |
Key Technologies in Industrial Display Systems | Examines structural frameworks like Liquid Crystal Displays (LCD), Light Emitting Diodes (LED), and various touchscreen architectures like resistive and capacitive mechanisms. |
Industrial Display Interfaces | Compares physical and digital communication protocols used for industrial video transmission, including VGA, DVI, HDMI, DisplayPort, and LVDS signals. |
Optical Performance Factors | Analyzes parameters governing visual performance, focusing on luminance levels, contrast metrics, viewing angles, and surface anti-reflective treatments. |
Engineering Considerations for Industrial Display Integration | Outlines hardware deployment strategies including mechanical mounting standards, NEMA/IP ingress protection, and thermal control methodologies. |
Additional Engineering Aspects for Rugged Performance | Addresses deep environmental ruggedization techniques such as vibration damping, electromagnetic compatibility, and wide temperature survival strategies. |
Typical Applications of Industrial Display Monitors | Explores standard deployment environments ranging from automated factory floors and chemical process sites to outdoor heavy machinery cabins. |

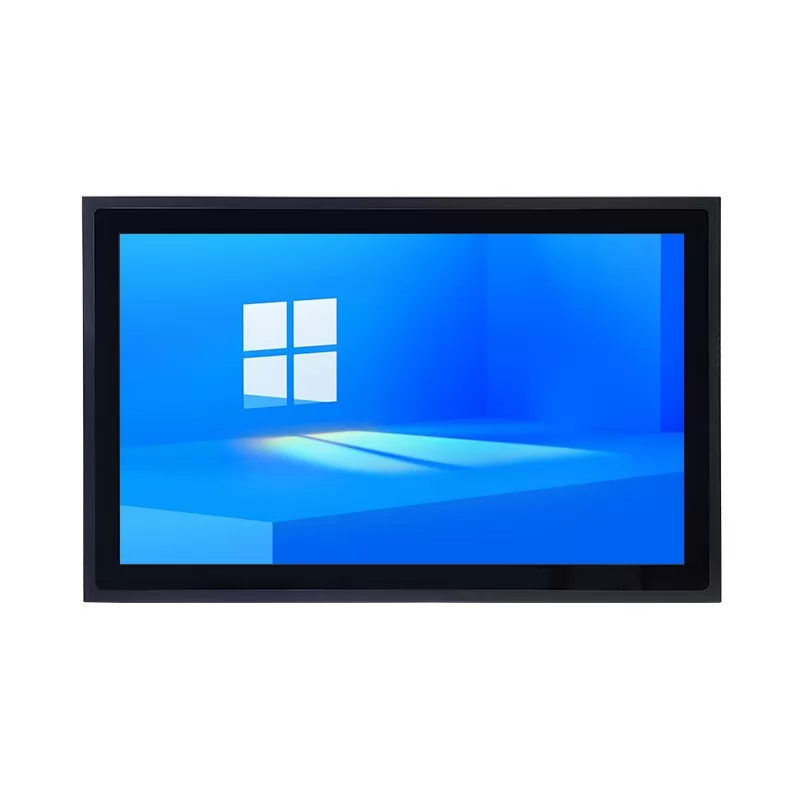

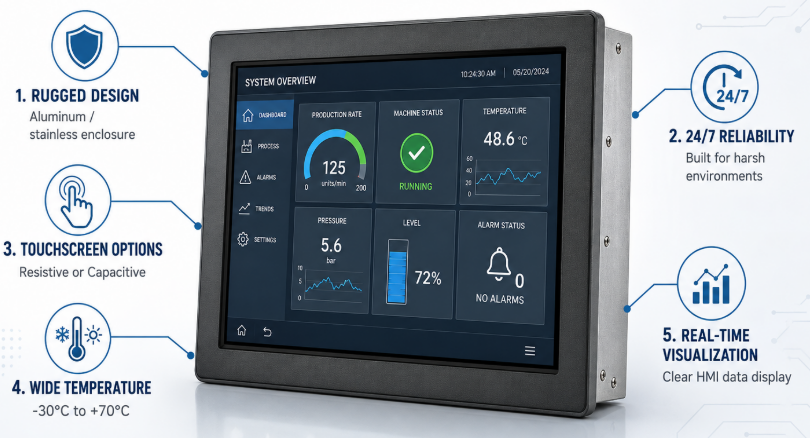

An industrial display monitor is a ruggedized visual hardware component explicitly engineered to operate reliably in harsh, demanding environments characterized by extreme temperatures, dust, moisture, and constant mechanical vibration. Unlike standard consumer monitors designed for temperature-controlled office spaces, these specialized systems use industrial-grade components with extended operational lifespans to guarantee continuous 24/7 performance. They serve as the central visual node for Human-Machine Interfaces (HMI), supervisory control systems, and automated machine workstations across diverse industrial facilities.
To fully understand these robust systems, engineers must look closely at the mechanical and electrical foundations that distinguish them from standard commercial monitors. Commercial screens are built with thin plastic shells and consumer-grade capacitors optimized for short daily cycles and low upfront costs. When placed in a factory setting, these consumer units fail quickly due to airborne particulate build-up, voltage surges, and fluctuating ambient temperatures. Industrial panels are built from the ground up using rigid aluminum, steel, or stainless steel chassis combined with heavy-duty internal power regulators and wide-temperature components.
Furthermore, these heavy-duty display panels are designed for long-term product availability, often remaining unchanged in form, fit, and function for five to ten years. This long lifecycle is vital for industrial original equipment manufacturers (OEMs) who cannot afford to redesign their machine cutouts or update software drivers every time a consumer panel manufacturer refreshes their product line. By utilizing specialized Industrial Displays with long lifecycle support, engineering teams ensure that replacement components can be dropped seamlessly into existing equipment slots without unexpected compatibility issues.
Finally, the internal electrical design of these monitors focuses on superior signal isolation and resistance to electromagnetic interference (EMI). Industrial environments are full of electrical noise generated by high-power electric motors, variable frequency drives (VFDs), and heavy-duty welding gear. Industrial display units incorporate advanced electrical shielding on their controller boards and video inputs to prevent screen flickering, signal dropouts, and premature component degradation, ensuring clear and reliable operations at all times.
Industrial display monitor systems depend on specific liquid crystal and touch-sensing technologies chosen to provide exceptional clarity, operational accuracy, and structural durability under physical stress. Modern industrial screens primarily utilize Thin-Film Transistor Liquid Crystal Display (TFT-LCD) panels paired with light-emitting diode (LED) backlighting arrays to achieve excellent energy efficiency and high brightness. When touch input is required, engineers choose between specialized resistive and capacitive touch overlay designs depending on the specific environmental demands of the workspace.
Modern industrial monitors rely heavily on active-matrix TFT-LCD technology because it provides precise control over individual pixels, resulting in fast response times and sharp graphical representations of complex industrial processes. The inclusion of industrial LED backlighting units represents a major upgrade over older cold cathode fluorescent lamp (CCFL) designs, offering double the operational life (often exceeding 50,000 to 100,000 hours), lower power consumption, and instant brightness activation even in sub-zero environments.
Resistive touch screens are highly favored in heavy industrial environments where operators must interact with machines while wearing thick protective work gloves or where the screen surface is regularly exposed to water splashes and airborne oil residue. This technology works via mechanical pressure, utilizing two flexible, transparent conductive layers separated by tiny spacer dots. When an operator presses the screen, the outer layer flexes to touch the inner layer, completing an electrical circuit that registers the precise coordinates of the touch.
Projected Capacitive (PCAP) touchscreen technology provides a highly intuitive multi-touch experience identical to modern consumer smartphones, but it is built with significantly thicker, scratch-resistant cover glass to survive industrial impacts. PCAP screens track touch inputs by measuring minute changes in electrical capacitance across an invisible conductive grid embedded within the glass layers. These advanced systems use specialized controller firmware tuned to reject false touch inputs caused by pooling water, conductive dust buildup, or thin industrial work gloves.
Performance Metric | Resistive Touch Technology | Projected Capacitive (PCAP) Technology |
Actuation Mechanism | Physical pressure on flexible top layer | Electrical capacitance alteration via proximity |
Glove Compatibility | Works perfectly with all glove types and materials | Requires specialized thin or conductive gloves |
Fluid Contamination Resistance | Unaffected by water, oil, or chemical splashes | Requires firmware tuning to handle pooling liquids |
Scratch and Impact Resistance | Vulnerable to sharp tools and surface punctures | Exceptionally high due to thick tempered cover glass |
Multi-Touch Capability | Limited to single touch tracking points | Supports multi-touch gestures and zoom actions |
Optical Transparency | Lower light transmission due to dual plastic layers | High optical clarity through solid glass stackups |
Industrial display systems rely on a variety of legacy and cutting-edge video interface standards to guarantee flawless communication with diverse industrial computing platforms. Because industrial machinery often remains in active service for decades, a single manufacturing facility might require displays that connect to legacy analog automation systems as well as modern digital computers. Consequently, industrial display controller boards are engineered to support multiple input types simultaneously, handling various signaling speeds, cable lengths, and electrical isolation levels.
The Video Graphics Array (VGA) interface remains common in industrial settings due to its historic widespread adoption in early programmable logic controllers (PLCs) and industrial PCs. VGA translates digital graphical information into analog voltage signals, which can make it vulnerable to signal degradation over long cable runs in environments with high electromagnetic noise. Digital Visual Interface (DVI) bridges this gap by providing a pure digital signal pathway that preserves pixel-perfect clarity without analog conversion artifacts, making it a reliable choice for older digital control loops.
High-Definition Multimedia Interface (HDMI) and DisplayPort are the dominant digital standards for modern, high-resolution industrial monitoring systems. HDMI combines ultra-high-definition video data and multi-channel audio data into a single cable featuring a secure physical locking mechanism to prevent accidental disconnection caused by machine vibrations. DisplayPort provides even higher data bandwidth capacities, allowing a single industrial workstation to drive multiple high-resolution panels in a daisy-chain configuration over a single master cable link.
Low-Voltage Differential Signaling (LVDS) is an internal display interface used to link the main display controller board directly to the raw LCD panel panel substrate. LVDS uses differential signaling lines to transmit high-speed digital graphics data at very low voltages, which minimizes internal electromagnetic emissions and prevents crosstalk within compact, tightly sealed enclosure designs. This makes LVDS the industry standard for custom embedded panel PCs and integrated display modules used within complex machinery.
The visual performance of an industrial monitor is a key factor in operator safety and overall system usability, as operators must be able to read critical process data quickly from various angles and under changing light conditions. To ensure clear visibility, engineers look closely at key optical specifications including panel luminance, contrast metrics, viewing angles, and specialized glass surface coatings. Properly optimizing these characteristics prevents operator eye strain and eliminates dangerous misreadings of critical machine status information.
Display luminance is measured in candelas per square meter (cd/m²) or nits, and the required brightness level depends directly on the ambient lighting conditions of the installation site. Standard indoor control rooms typically require display panels with brightness levels ranging between 250 and 400 nits for comfortable reading. However, for outdoor equipment installations or indoor workspaces with overhead skylights, high-brightness displays delivering 1000 to 1500 nits are essential to prevent the display from looking washed out under intense sunlight.
The contrast ratio represents the luminance difference between the brightest white and the darkest black pixels that a display panel can project at the same time. High contrast ratios (such as 1000:1 or higher) are critical for displaying clear, easily readable text, intricate industrial schematics, and sharp graphical status icons. Industrial displays use advanced local-dimming LED backlights to maintain deep black levels, ensuring that critical alarms and tracking charts remain distinct even in dimly lit factory control rooms.
Viewing angle metrics define the maximum horizontal and vertical angles from which an operator can read the screen content clearly without seeing significant color shifts or loss of contrast. Industrial displays utilize advanced In-Plane Switching (IPS) or Multi-domain Vertical Alignment (MVA) panel structures to provide wide 178-degree horizontal and vertical viewing ranges. This wide viewing area allows operators to monitor automated machine cycles safely from a distance or from a sharp angle without needing to stand directly in front of the console.
To mitigate blinding reflections caused by bright overhead factory bay lighting or direct sunlight, industrial display glass surfaces receive advanced anti-glare (AG) or anti-reflective (AR) treatments. Anti-glare coatings use a microscopic chemical etching process to scatter reflecting light rays across the glass surface, reducing harsh mirror-like reflections. Anti-reflective treatments utilize multi-layered thin-film coatings that cause destructive light interference, cancellation out reflecting light waves to maximize screen contrast in bright environments.
Integrating a rugged display monitor into an existing industrial machine setup requires a thorough evaluation of mechanical, environmental, and thermal engineering parameters. Proper integration ensures that the monitor fits securely within the physical machine framework, resists ingress from fluids and fine particulates, and maintains stable internal operating temperatures during continuous, long-term operation. Engineers must carefully balance these structural considerations to prevent premature hardware failure on the factory floor.
Industrial displays must offer versatile mounting configurations to fit seamlessly into diverse factory layouts, including machine control console cutouts, articulate swing arms, and overhead support pillars. The Video Electronics Standards Association (VESA) mounting standard provides a universal grid pattern on the rear panel for easy attachment to standardized arms and brackets. For flush integration into smooth machine control walls, panel-mount configurations utilize integrated perimeter studs and heavy-duty retention clips to create a seamless, dust-tight front bezel seal.
To survive regular exposure to spraying water, corrosive chemical washes, and fine conductive dust, the display enclosure must meet strict Ingress Protection (IP) or National Electrical Manufacturers Association (NEMA) ratings. A front bezel rating of IP65 indicates that the monitor surface is completely sealed against dust ingress and can withstand direct water jets from any angle without leaking. For extreme hygienic environments like food processing or pharmaceutical manufacturing, upgrading to an IP69K-rated stainless steel enclosure allows the monitor to endure high-pressure, high-temperature sanitization washdowns.
Industrial displays must dissipate internal heat efficiently while operating in poorly ventilated machine cabinets or high-temperature factory environments. Fanless thermal management designs use integrated aluminum heat sinks and heavy-duty metal chassis frames to pull heat away from internal graphics processors and backlights, venting it directly into the surrounding air. This eliminates the need for open cooling fans, which can pull in airborne dust and oil mist, causing internal electrical shorts and mechanical failures.
Review Spatial Limitations
Measure the available cabinet depth, front clearance, and overall cutout dimensions to ensure an exact physical fit.
Select a suitable panel size, such as a compact 10.4-inch Industrial Display for space-constrained panels, to fit within existing machine dashboards without structural changes.
Verify Environmental Exposure Risks
Identify potential exposure to dripping water, chemical cleaners, conductive metal dust, or outdoor weather elements.
Choose the appropriate IP rating (e.g., IP65 for general dust/water protection, IP69K for intensive high-pressure washdowns).
Evaluate Thermal Environment Parameters
Calculate the maximum ambient temperature inside the equipment cabinet during peak summer operations.
Choose fanless passive cooling architectures if the environment contains airborne oils, conductive fibers, or abrasive dust particles.
Select the Structural Mounting Method
Determine whether the monitor will be flush-mounted into a console door, attached to a VESA swing arm, or mounted in an open-frame chassis.
Verify that the mounting structure can support the weight of a ruggedized metal display unit under continuous vibration.
Beyond standard sealing and mounting considerations, achieving long-term reliability on the factory floor requires deep structural ruggedization to handle severe mechanical shock, continuous vibration, and complex electromagnetic fields. When deployed near massive stamping presses, heavy milling equipment, or high-voltage power switchgear, a monitor faces intense physical and electrical stresses. If unaddressed, these forces can cause internal component cracks, broken solder joints, or severe video signal distortions.
Continuous structural vibration from nearby machinery can cause standard electrical connectors to back out and lead to microscopic cracks in internal circuit boards. Rugged industrial monitors use solid internal components, locked interconnect cables, and shock-absorbing rubber dampers to isolate sensitive electronics from mechanical forces. Internal circuit boards are often coated with a specialized conformal silicone layer to provide extra support for surface-mount components, preventing electrical failures caused by persistent shaking.
Industrial facilities contain a wide mix of high-voltage power lines, wireless communication systems, and high-frequency induction heaters that generate significant electromagnetic interference (EMI). Industrial displays are engineered to comply with strict electromagnetic compatibility (EMC) standards, utilizing thick metal enclosures and conductive gasket seals to block external electrical noise. This advanced shielding prevents screen flicker and data errors, ensuring that the monitor does not interfere with nearby sensitive wireless control signals.
Industrial machinery often operates in non-climate-controlled environments, ranging from sub-zero outdoor oil fields to blistering hot steel foundries. Industrial displays utilize specialized wide-temperature components that allow the monitor to function smoothly across an extended temperature range, typically from -20°C to 70°C (-4°F to 158°F). Internal heating elements are automatically activated in freezing conditions to keep the liquid crystals fluid, while advanced thermal throttling protects the backlight array from overheating in hot environments.
Rugged industrial displays are used across a wide range of demanding sectors, serving as the central point for human interaction, real-time data visualization, and automated system control. From clean, highly sterile medical production lines to dusty, heavy-duty mining operations, these tough monitors provide the visibility and operational reliability needed to keep complex systems running safely. Their versatile, heavy-duty construction makes them an essential tool for modern industrial workflows worldwide.
On modern automated assembly lines, rugged monitors are integrated into central control cabinets to provide clear, real-time tracking of high-speed robotic systems, conveyor lines, and CNC machinery. Operators rely on these responsive interfaces to adjust production parameters, view diagnostic fault codes, and manage complex recipes on the fly. The rugged front screens resist scratches from tools and ignore false touch inputs from flying debris or coolant splashes, ensuring uninterrupted production cycles.
In chemical processing, oil refining, and power generation facilities, industrial monitors display complex fluid schematics, temperature trends, and critical pressure safety metrics. These displays are built with sealed, spark-free enclosures that comply with strict hazardous location safety standards to prevent accidental explosions in areas with flammable vapors. The clear, high-contrast screens ensure that safety technicians can identify critical system alarms instantly from across the control room floor.
Hygiene is the top priority in food processing and pharmaceutical production lines, requiring equipment to survive regular and aggressive sanitation procedures. Monitors deployed here feature smooth, gap-free stainless steel enclosures that prevent bacteria from taking root and resist corrosion from harsh chemical cleaners. These IP69K-rated displays endure daily high-pressure, hot-water washdowns without leaking, allowing for easy cleaning without requiring operators to cover or remove the display panels.
On marine vessels, open-pit mining vehicles, and heavy construction machinery, display monitors must remain fully viewable under direct, blinding sunlight and survive harsh outdoor weather conditions. These specialized outdoor displays feature high-brightness 1500-nit backlights and advanced optical bonding to eliminate internal fogging and glare, keeping navigation charts and equipment diagnostics perfectly clear. Their heavy-duty enclosures protect internal electronics from saltwater corrosion, heavy dust storms, and severe mechanical impacts on rough terrain.
