Embedded Computers: How Rugged is Rugged Enough?

Determining how rugged an embedded computer needs to be depends on matching environmental stressors like extreme temperatures, severe shock, vibration, dust, and electrical interference against certified hardware standards like IP ratings and MIL-STD-810H. Deploying standard industrial computers in extreme settings leads to high failure rates, whereas over-specifying fully ruggedized systems unnecessarily escalates hardware costs. Selecting the optimal level of ruggedness requires evaluating thermal dissipation thresholds, ingress protection levels, power supply isolation, and system reliability metrics to achieve an ideal balance between durability, performance, and long-term total cost of ownership.

At a Glance

The Industrial vs. The Rugged Industrial

Standard industrial computers and fully ruggedized industrial systems serve distinctly different operational environments based on their underlying mechanical architecture, thermal management, component selection, and resistance to environmental stress.

In modern automated environments, embedded computing platforms are required to process critical sensor data, execute real-time machine vision tasks, and coordinate complex industrial operations. However, a common engineering misconception is treating all industrial-grade hardware identically. Standard industrial PCs are primarily engineered to operate in controlled factory floors, cleanroom enclosures, or indoor control cabinets. These systems typically offer extended lifecycle support, legacy I/O connectivity, and moderately higher ambient temperature tolerances than off-the-shelf commercial desktop computers. However, when placed in unconditioned outdoor environments, heavy machinery cabins, or high-vibration automotive platforms, standard industrial PCs frequently suffer from premature thermal throttling, joint stress failure, and component degradation.

Conversely, true rugged industrial computing platforms are built ground-up to withstand severe environmental stressors without degrading computing performance. Rugged PCs utilize specialized fanless aluminum-alloy enclosures that function as high-efficiency passive heat sinks, eliminating open ventilation slots and rotating cooling fans that serve as primary failure points in dusty or dirty environments. In addition, internal components in ruggedized architectures are systematically reinforced. Memory modules and solid-state drives are often soldered directly onto the motherboard or secured using industrial-grade structural adhesives and shock-damping mounting brackets to survive continuous vibration and high mechanical impact.

Furthermore, electrical design differences between standard industrial PCs and specialized rugged hardware are substantial. While standard industrial systems rely on tightly regulated DC power feeds, rugged systems incorporate wide-voltage power input stages, transient voltage surge suppression, and isolated I/O ports. This hardware isolation prevents electrical noise, ground loops, and sudden voltage spikes from damaging central processing units during heavy industrial machine start-up cycles. Engineering teams selecting edge computing hardware must differentiate between these two tiers based on exact environmental risk profiles rather than initial purchase price alone.

When selecting high-performance computing hardware for demanding field deployments, engineers frequently specify an AI Endpoint Industrial Grade Fanless PC to bridge the gap between heavy AI inference workloads and rugged environmental resilience.

Factors Influencing the Choice

Selecting the appropriate embedded platform requires balancing mechanical robustness, field connectivity requirements, power supply stability, and long-term application deployment goals.

Robustness

The primary evaluation criteria for Rugged PCs center on mechanical durability and environmental tolerance. Robustness is not merely a single metric; it encompasses a system's combined resistance to physical impact, ambient temperature extremes, sustained vibration, and atmospheric contamination. When computing hardware is deployed on agricultural machinery, mining trucks, or rail transport, continuous physical shock can induce micro-cracks in printed circuit board solder joints. Ruggedized platforms mitigate this risk by utilizing thick PCB substrates, cable-less internal structural layouts, and ruggedized mounting kits compliant with MIL-STD-810H testing protocols.

Connectivity

Field connectivity requirements dictate the physical interface design of embedded systems. Industrial deployments demand diverse legacy and high-speed networking protocols to communicate with sensors, programmable logic controllers, and high-resolution industrial cameras. Standard RJ45 Ethernet connectors and USB headers tend to dislodge or suffer contact degradation under continuous mechanical vibration. Ruggedized edge computing systems resolve this by integrating lockable DB9 serial ports, M12 X-coded industrial Ethernet connectors, and power-over-Ethernet (PoE+) ports capable of driving multiple GigE vision cameras over extended cable runs without separate power drops.

Power

Power delivery in industrial, automotive, and heavy machinery installations is rarely stable. Vehicle engine ignitions, heavy motor startups, and inductive load switching generate severe electrical spikes, reverse polarity conditions, and transient voltage surges. High-reliability Rugged PCs feature wide-range DC input support (typically spanning 9V to 36V or 9V to 48V DC) alongside integrated over-voltage, over-current, and reverse polarity protection circuits. In mobile vehicle deployments, power management modules also incorporate intelligent ignition power sensing, enabling graceful system shutdown sequences when vehicle power is cut off, thereby preventing solid-state drive file corruption.

Deployment Goals

Long-term deployment goals determine the overall architectural strategy for industrial edge installations. Industrial operators prioritize long availability lifecycles (often requiring 5 to 7+ years of identical hardware supply) to avoid re-certifying software stacks and mechanical enclosures. Furthermore, deployment goals focus heavily on total cost of ownership rather than initial capital expenditure. Deploying purpose-built Rugged PCs minimizes costly field service calls, unexpected operational downtime, and emergency system replacements in remote or hard-to-access industrial facilities.

1. High Reliability Requirements: Continuous 24/7 operation without maintenance intervention in unstaffed facilities.

2. Extended Supply Lifecycle: Guaranteed long-term CPU and chipset support from industrial roadmap lines.

3. Modular Expandability: Support for mini-PCIe, M.2 B-Key/M-Key, and PCIe expansion slots for field upgrades.

4. Flexible Mounting Options: Integrated support for DIN-rail, wall-mount, and VESA mounting structures.

Understanding the Operating Environment

Accurately mapping environmental operating conditions against processing requirements ensures that embedded hardware achieves maximum computational efficiency without thermal or mechanical failure.

Performance Requirements

Modern edge computing deployments increasingly require real-time processing of high-throughput visual data, machine learning algorithms, and multi-axis control loops right at the machine edge. Historically, rugged hardware compromised computational performance to maintain low thermal design power (TDP) passively. However, advancements in low-power multi-core silicon and integrated AI neural processing units allow modern systems to execute complex deep learning models directly in harsh field settings. High-density edge AI workloads demand fast LPDDR5/DDR5 system memory, high-speed NVMe storage read/write capabilities, and dedicated GPU acceleration cards without exceeding thermal thresholds.

Selecting a capable industrial-grade fanless PC with AI edge computing capabilities allows system integrators to process multi-channel high-definition camera feeds and predictive maintenance analytics at the physical site without relying on latency-prone cloud infrastructure.

Environmental Conditions

Evaluating environmental conditions requires assessing thermal, atmospheric, and mechanical variables present at the installation location. In outdoor oil and gas monitoring stations or solar farm control units, ambient temperatures routinely exceed 50°C inside sealed junction boxes, while dropping far below freezing during winter nights. Standard commercial silicon and thermal paste deteriorate rapidly under these cyclic temperature swings. Furthermore, airborne contaminants such as metal dust in manufacturing plants, salt mist in marine environments, or high humidity in chemical processing facilities will short-circuit open-ventilated computer housings.

To operate continuously under these harsh variables, engineered Rugged PCs utilize specialized thermal conduction paths that draw heat directly from heat-generating components like CPUs, GPUs, and power ICs to an external heavy-duty aluminum heatsink housing. This passive thermal design maintains complete enclosure sealing, blocking dust, moisture, and chemical agents from reaching sensitive internal circuit boards.

Thermal Dissipation Management: To prevent thermal throttling during high-load AI processing in elevated ambient temperatures, heat sinks must be calculated based on the maximum total system TDP. Engineers specify high-conductivity copper heat pipes combined with custom CNC-machined aluminum conduction blocks, ensuring that the maximum junction temperature of the CPU remains safely below critical silicon thresholds even when ambient temperatures reach 70°C.

Key Factors Determining Ruggedness

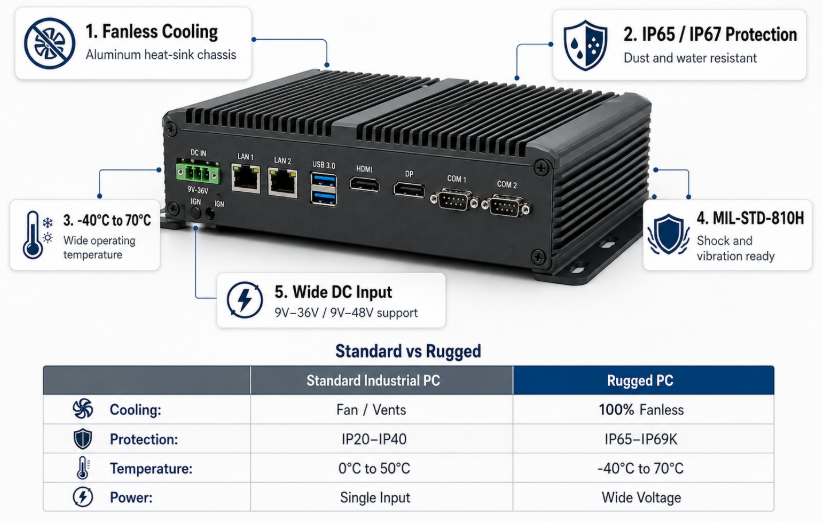

System ruggedness is defined by measurable engineering metrics including ingress protection codes, military shock and vibration certifications, wide-voltage electrical protection, and fanless passive cooling architectures.

Determining whether an embedded system is rugged enough requires evaluating specific engineering standards rather than marketing terminology. First, Ingress Protection (IP) ratings define how effectively an enclosure prevents dust particles and liquids from penetrating the chassis. While IP40 is sufficient for indoor cabinet mounting, true field-deployed Rugged PCs achieve IP65, IP67, or IP69K ratings through precision silicone O-rings, waterproof M12 connectors, and pressure-tested gasket seals.

Second, resistance to mechanical shock and vibration is measured under standardized military protocols, primarily MIL-STD-810H. Under continuous operational vibration, traditional socketed components, ribbon cables, and hard disk drives experience mechanical fatigue and detachment. Ruggedized computing platforms utilize cableless internal designs, where all I/O interfaces, power stages, and expansion slots are integrated directly onto a single thick motherboard or rigid riser board.

Third, power regulation stages in advanced Rugged PCs are engineered to handle clean and dirty power systems alike. Incorporating wide DC power input capabilities allows direct integration into 12V, 24V, or 48V vehicle and factory power grids without requiring external voltage converters. Furthermore, integrated power protection circuits guard against Over-Voltage Protection (OVP), Over-Current Protection (OCP), Surge Protection compliant with IEC 61000-4-5 standards, and ESD protection compliant with IEC 61000-4-2 standards.

1. IP Rating Certification: Ensures complete sealing against fine dust particles, water spray, or high-pressure steam washdown.

2. MIL-STD-810H Compliance: Validates structural integrity under rigorous multi-axis shock, drop, and vibration profile testing.

3. Cable-less Chassis Design: Eliminates internal wiring harnesses to prevent signal degradation and connector detachment over time.

4. Wide Operational Temperature Components: Employs wide-temperature capacitors, industrial storage drives, and wide-temp RAM modules.

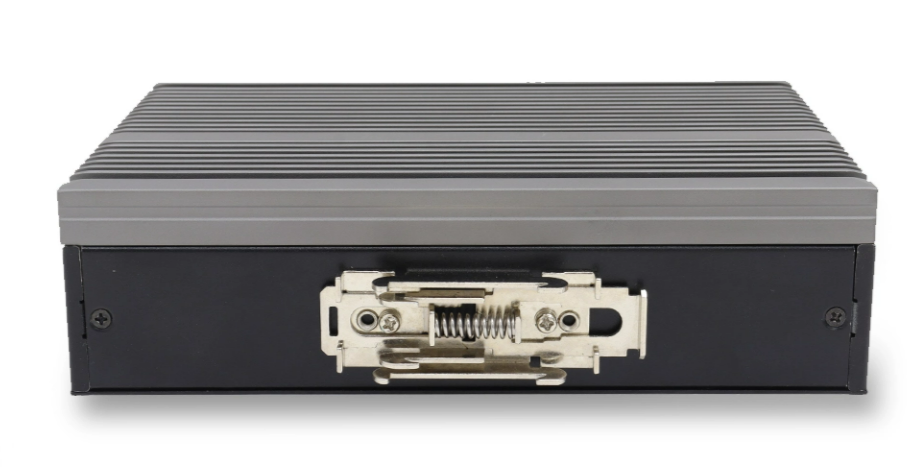

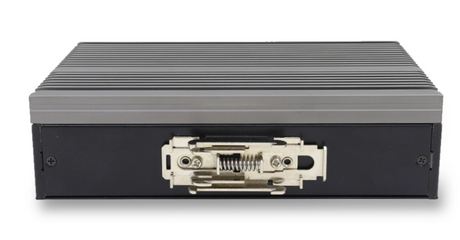

European industrial automation clients heavily favor compact, completely cableless fanless chassis equipped with lockable DIN-rail mounting brackets and front-facing I/O interfaces. This configuration allows rapid installation within narrow control cabinets, simplifies routine cable management, and facilitates quick field servicing without requiring full system teardown.

Deploying a versatile high-performance AI edge fanless computer ensures that field installations maintain high computational output while resisting thermal degradation, electrical line noise, and mechanical stress in challenging industrial settings.

Preventative Maintenance and Zero-Ventilation Protocol: Because fully ruggedized fanless computers contain no moving parts, routine maintenance schedules are drastically reduced compared to actively cooled systems. However, field technicians should periodically inspect external heat sink fins to ensure they remain clear of heavy particulate accumulation, ensuring optimal thermal radiation efficiency over extended years of continuous operation.

Conclusion

Matching embedded hardware specifications directly to the operational environment prevents under-engineering failure risks while avoiding costly over-specifications.

Determining how rugged is rugged enough for an embedded computing system comes down to a systematic evaluation of environmental stressors, mechanical demands, power conditions, and processing requirements. Deploying commercial or light-industrial PCs in harsh field environments leads to unexpected downtime, frequent component failures, and elevated operational costs. Conversely, over-specifying military-grade extreme hardware for mild indoor applications inflates initial capital budgets without offering tangible operational advantages.

By carefully measuring ambient thermal ranges, vibration spectra, ingress risks, and power line characteristics, system architects can select the exact level of ruggedness required for long-term operational success. Investing in purpose-built Rugged PCs with cableless architecture, fanless passive thermal dissipation, wide-voltage protection, and certified ingress resistance ensures reliable 24/7 edge processing, long product lifecycles, and optimal total cost of ownership across mission-critical industrial applications.
