SKU | VFACEH-185 |
Screen Size | 18.5” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |

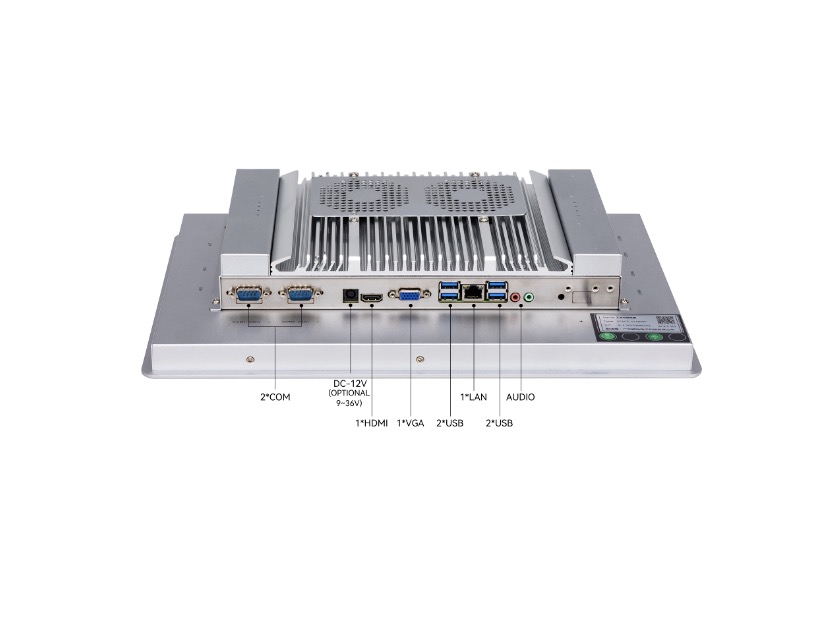

Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PC IE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

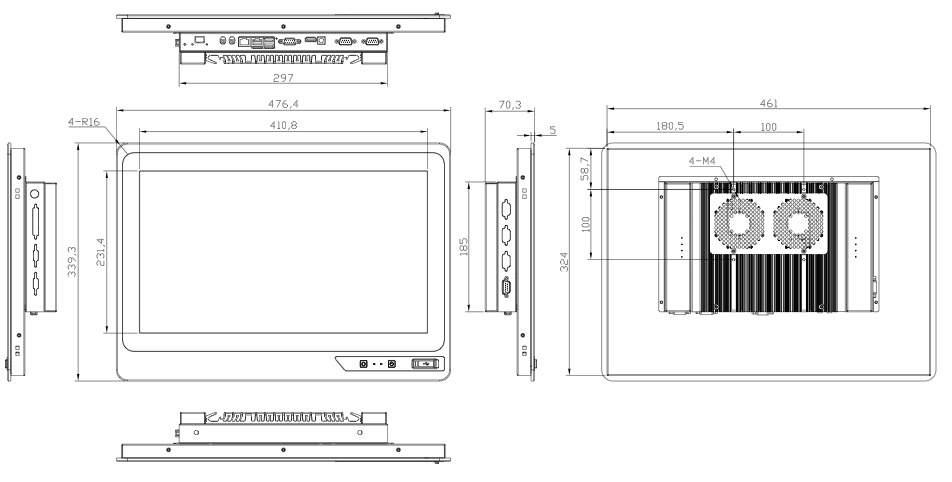

Dimension | 476.4x339.3x70.3mm |
Mounting Hole Size | 464x327mm |
Gross Weight | 6 .54kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
If your power plan is set to "Balanced" or "Power saver" and you're experiencing issues like audio crackles, dropouts or other negative performance issues, we recommend switching to our Vincanwo Group brand 18.5” High-performance Panel PC | VFACEH-185 power plan. It uses more energy, but should increase the performance of Live (and other CPU intensive programs).
Powerful Processors:
A high-end CPU with multiple cores and a high clock speed is crucial for handling demanding tasks efficiently.
Fast Graphics Cards:
A dedicated GPU with ample memory and processing power is essential for rendering complex visuals and handling demanding games or applications.
High-Speed Memory (RAM):
More RAM allows the PC to run more programs simultaneously and handle larger datasets without slowing down.
Large and Fast Storage Drives:
A combination of a fast SSD for the operating system and applications, and a large HDD or SSD for storing files and media, ensures quick boot times and fast file access.
High-Resolution Displays:
A display with a high resolution and refresh rate (like 144Hz or higher) enhances the visual experience, especially for gaming and video editing.
Advanced Cooling Systems:
Effective cooling is necessary to prevent the PC from overheating under heavy load and to maintain stable performance.
>Product Applications
Our Vincanwo Group brand 18.5” High-performance Panel PC | VFACEH-185 is primarily used in industrial automation, Human-Machine Interface (HMI) applications, and digital signage. They also find applications in public information kiosks, transportation, and fleet management.
Industrial Automation and Control Systems:
Act as the interface for operators to monitor and control industrial processes, machinery, and equipment.
Human-Machine Interface (HMI) in Manufacturing:
Provide a user-friendly interface for operators to interact with and control machinery, displays real-time data, and allows for remote monitoring and control, says a blog post by Inductive Automation.
Digital Signage and Interactive Displays:
With touchscreen capabilities, are used to display information, advertisements, and interactive experiences in public spaces.
Public Information Kiosks:
Used in airports, train stations, libraries, and other public locations to provide information and services.
Transportation and Fleet Management:
Used in vehicles and transportation hubs for monitoring, navigation, and communication.
Other Applications:
A blog post by AOPEN notes that they are also used in various industries for tasks like data logging, remote access, and more.
